Carbon eCranks for eBikes with motors by
- Brose
- Fazua-R50
- TQ-HPR50
- SRAM "Powertrain"
| SPECIFICATIONS | |
|---|---|
| INTRUCTIONS | |

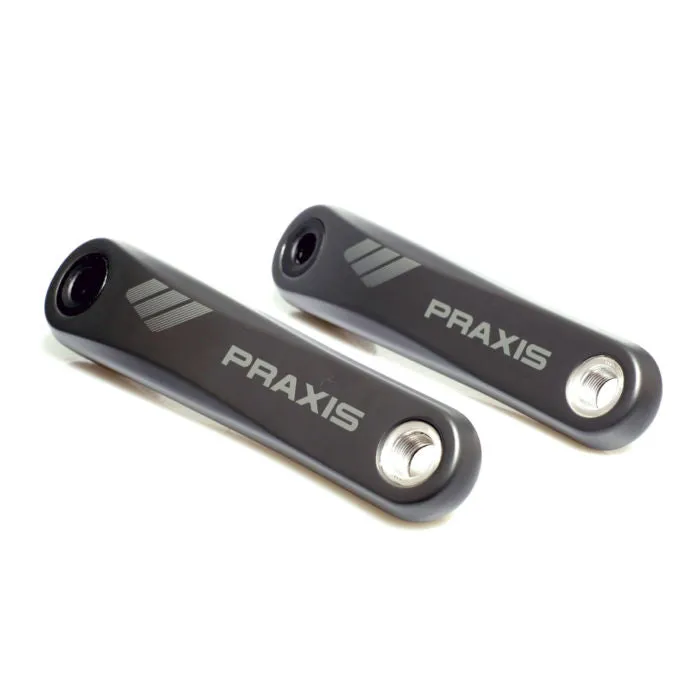

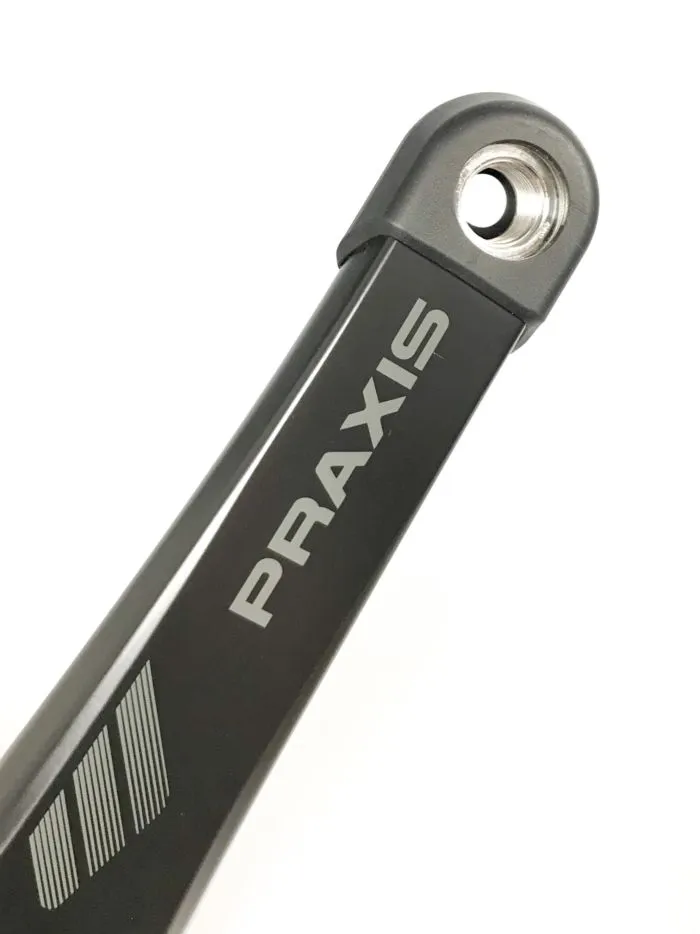

| E-CRANK CARBON | CARBON E-CRANK for Brose, Fazua-R50, TQ or SRAM Powertrain motor |
| BUY THIS IF : | You have an eBike with either a Brose, Fazua R50, TQ or SRAM motor and want a Carbon eCrank |
| MOTOR | BROSE -With steel ISIS spline spindle FAZUA-R50 -With steel ISIS spline spindle TQ -With steel ISIS spline spindle SRAM -With steel ISIS spline spindle |
| MATERIAL | Left & Right arm set | Carbon Fiber | Rubber protective boots |
| AVG. WEIGHT | 380g (165mm w/boots) 415g (172.5mm w/boots) |
| Q-Factor | All eBike motors have different width spindles and this directly affects the Qfactor when the crank is installed. These are the Qfactors when you install this crank on these motors : Q = 186mm : "Wide" installed on BROSE motor Q = 186mm : "Wide" installed on SRAM motor Q = 171mm : "Wide" installed on FAZUA R50 motor Q = 171mm : "Wide" installed on TQ motor Q = 178mm : "Road/Narrow" installed on Brose motor Q = 163mm : "Road/Narrow" installed on Fazua R50 motor Q = 163mm : "Road/Narrow" installed on TQ motor |
| MAIN BOLT | 8mm AL main crank bolt for Install/Self-Extract | 50Nm torque Our eCranks with ISIS Spline use our replaceable |
| TECH | |
| VIP NOTE | VIP – Do NOT order this crank if you own a Specialized Levo/Kenevo/Vomo/Vado. If you have a Specialized e-bike with steel ISIS spline spindle then . |
